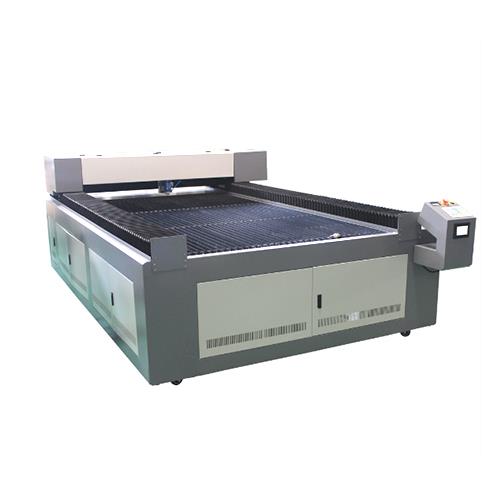

Product Name: Acrylic Laser Engraving Cutting Machine
Classification: Acrylic Laser Cutting Machine
Application: Stone, granite, glass, crystal, etc.
Place Of Origin: China
...
Product Parameters
Model | MC-1325 |
Working size | 1300*2500mm |
Laser type | Sealed CO2 laser tube(weegiant Brand) |
Laser power | 150W/180W Weegiant laser tube |
Cutting speed | 0-4,000mm/min due to different material |
Position accuracy | ±0.02mm |
Work platform | Stainless sheet and knife table |
Operating temperature | 0-45 degree |
Minimum shaping character | English 1*1mm |
Graphic format supported | BMP, PLT, DST, DXF, and AI |
Driving system | Stepper motor |
Cooling mode | Industrial Chiller |
Auxiliary equipment | Exhaust-fan, air-exhaust pipe |
Controlling software | Off-computer controlling system |
Compatible software | Coreldraw AutoCAD Photoshop |
Working voltage | AC110-220V ±10%/10A,50-60HZ |
Power | <2000W |
Packing | Standard Plywood |
Weight | 1000KGS |
Product Application
Stone Industry(engrave): marble, granite, white marble etc.
Artcrafts Industry: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
Advertisement Industry: double color board,acrylic engraving and cutting,label engraving,crystal etc.
Model Industry: sand table constructtion model,plane model etc.
Packing Industry:rubber engraving,plastic,doubling plate,die board cutting etc.
leather and cloth processing Industry:compound leather,man-made leather,fabric,fur ,toy etc.
other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.
Product Features
MC 1325 is a mixing cutting machine, widely used in metal and nonmetal cutting and engraving.
Japan Yaskawa Servo motor to ensure the high precision, running stable and long-operation.
Special follow up laser cutting head, which can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision.
RDCAD/CAM Laser Work control system with English Color screen display and compatible with USB, PC and various memeries.
HIWIN square rail with high precision and stable of cutting.
The weight of the cutting machine is about 1.2tons, much heavier than others, to reduce the precision error caused by machine vibration.
Low running cost which is about 5KVA/hour.
More
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment of Acrylic Laser Engraving Cutting Machine, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
