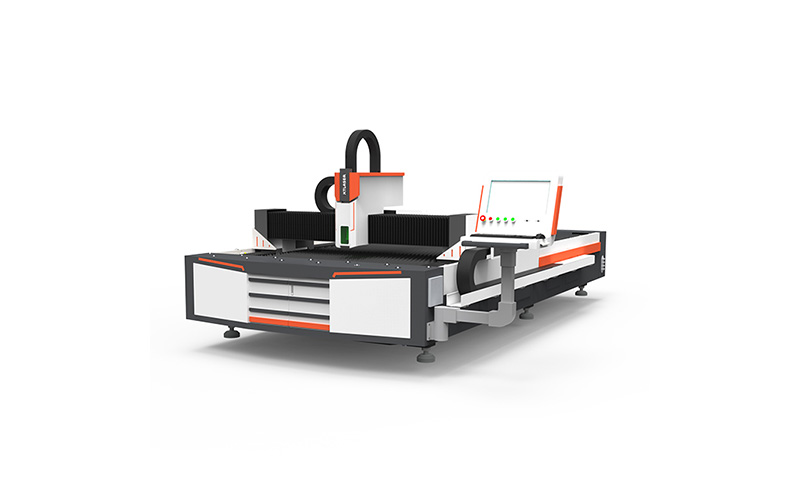

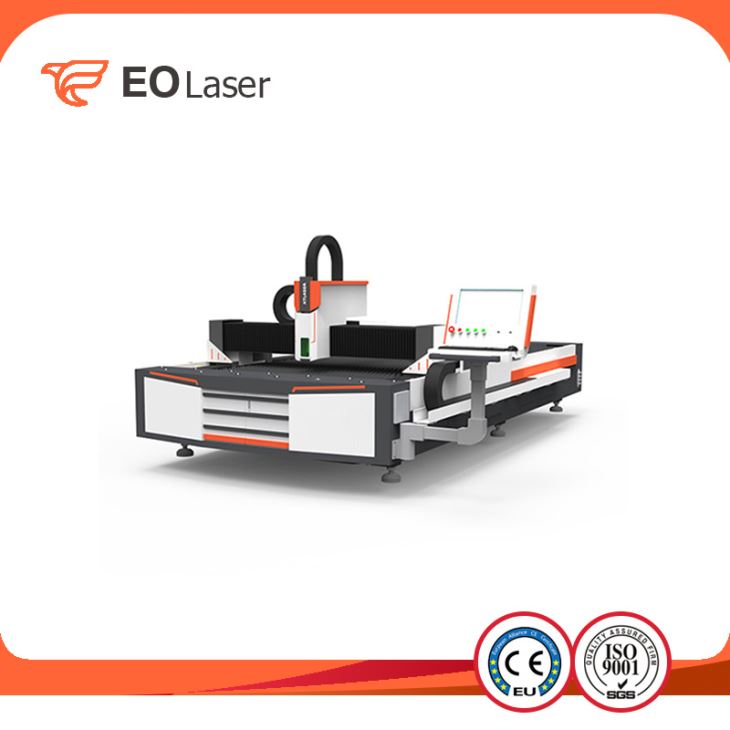

Metal Fiber Laser Cutting Machine

Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and most non-ferrous metals...

Product Details

Quick Details
Application:	Laser Cutting, laser cutting machine	Condition:	New
Laser Type:	Fiber Laser	Applicable Material:	Metal, stainless steel, carbon steel, aluminium
Cutting Thickness:	10mm metal	Cutting Area:	1500mm * 3000mm Optional
Cutting Speed:	72m/min	CNC or Not:	Yes
Cooling Mode:	Water Cooling	Control Software:	CutMax Fiber laser cutting software
Graphic Format Supported:	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place of Origin:	China (Mainland)
Brand Name:	EO Fiber laser cutting machine	Model Number:	EO-F1530 Fiber laser cutting machine
Certification:	CE, ISO, Fiber laser cutting machine	After-sales Service Provided:	Engineers available to service machinery overseas
Cutting Speed:	60m/min	Drive system:	Gantry gear rack double-drive
Positioning accuracy:	±0.15mm	Repeated positioning accuracy:	±0.1mm
Environmental protection:	air purifier	Cutting accuracy:	Less than 0.08mm/m
Repeat locating accuracy:	Less than 0.04mm/m	Max cutting thickness:	16mm
Keywords:	laser cutting machine

Characteristics:

1.Stability and reliability of light path system and control system

2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours

3.Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge

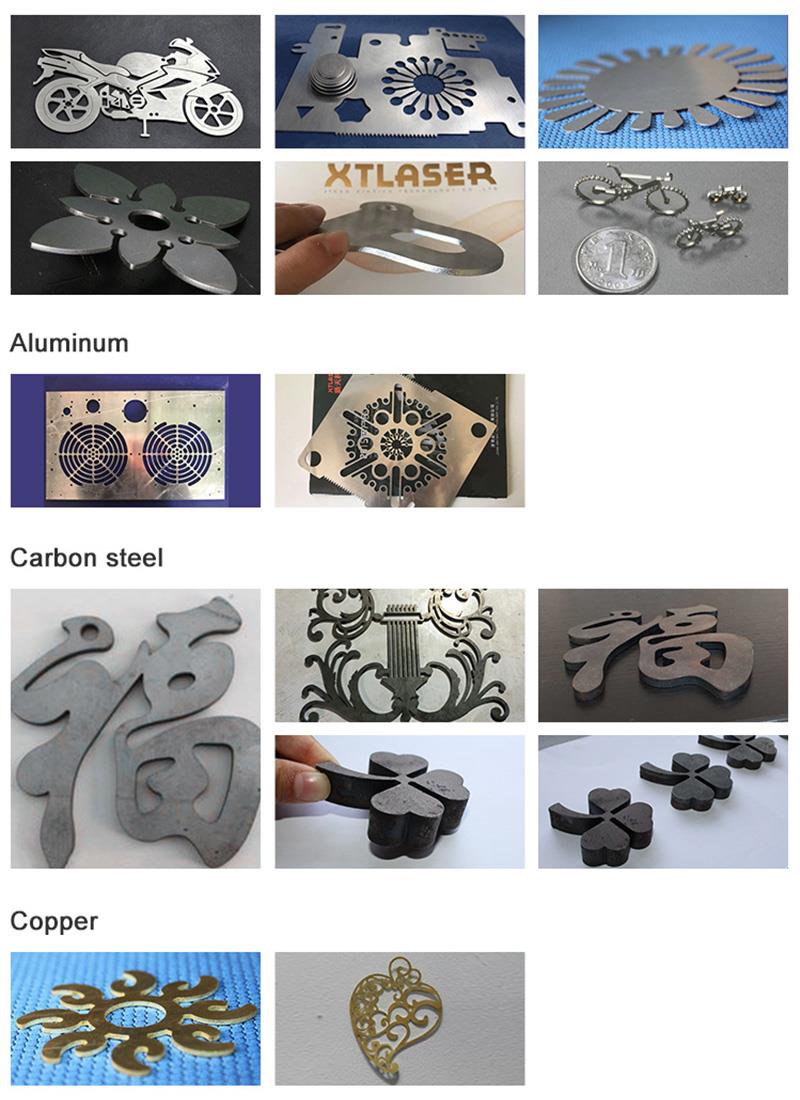

4.German high performance reducer,gear and rack;Japanese guide and ball screw. Applicable Industry and materials :fiber laser cutting machine application:metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevatormanufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.Our fiber laser cutting machine's Application Materials:Professional used to cut thin sheet metal, in a variety of high quality 0.5 -3 mm carbon steel sheet cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolyticplate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

Main Features

1).Open Type Fiber Laser Cutting Machine all in one XTC-F1530H

2). Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and most non-ferrous metals

3). Fiber laser power source options from 300W to 3KW

4).Fiber offers reduced maintenance requirements and operating costs compared to CO2

5).Position acccuracy <+/- 0.04mm

6).Japanese servo motors & drivers

7).Drive system X-axis ball screw drive, Y-axis square rail with rack and pinion gear

8).Working voltage: 380V, 50Hz /60Hz

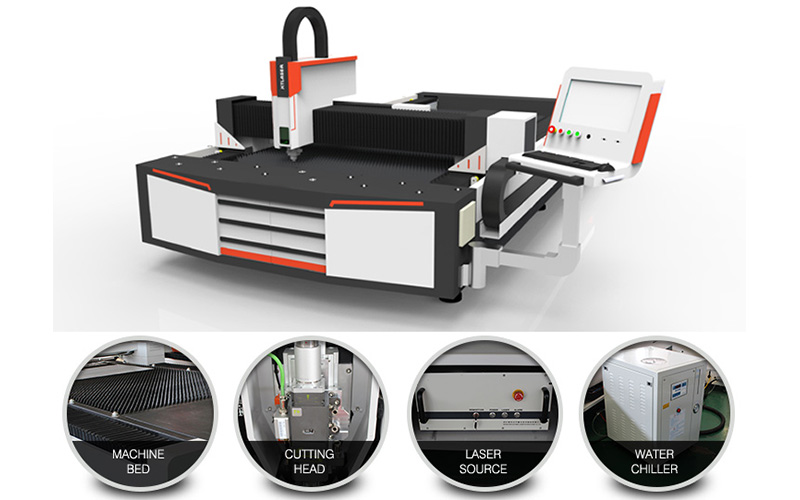

SPECIFICATIONS FOR OPT-C1350 fiber laser cutting machine
LASER SOURCE	RAYCUS LASER
CUTTING HEAD	RAYTOOLS BT-240
LATHE BED	OPTIC
DRIVE MODE	DUAL DRICE
TRANSMISSION	TAIWAN YYC RACH AND PINION
GUIDE RAIL	1 SET OF PMI FROM JAPAN
SERVO MOTOR AND DRIVER	4 SETS OF YASKAWA FROM JAPAN
REDUCER	GERMANY NEUGART
WATER CHILLER	DOLUYO 1P
CONTROL SYSTEM	CYPCUT FROM SHANGHAI, CHINA
COMPUTER	ADVANTECH INDUSTRY COMPUTER
POWER REQUIREMENT	3 PHASE AC 380V 50HZ
GROSS WEIGHT	3.05MTS
TERMINAL ROW	GERMANY WEIDMULLER
RELAY	GERMANY SIEMENS
SOLENOID VALUE	TAIWAN AIRTAC
PROPORTIONAL VALUE	JAPANESE SMC
WORKING SIZE	3000*1500 MM

Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
