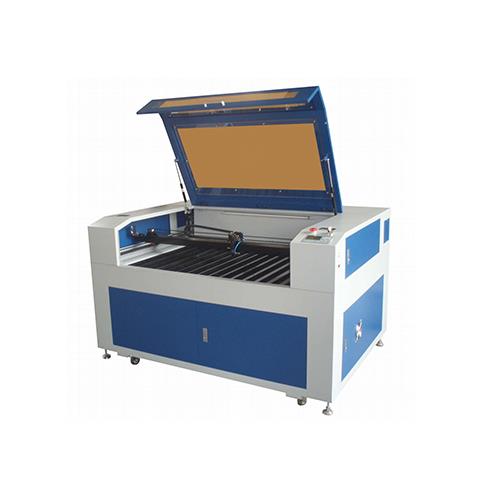

RD Control System Paper Laser Cutting Machine

Product Parameters

 Laser-type : Sealed CO2 laser tube, water-cooling, 10.6um

 Laser power: 80W(other wattages available)

 Machine Power: 220VAC

 Engraving area: 1200*900mm, 1300*900mm, 1400*900mm, 1400*1000mm, 1600*1000mm(other size available)

 Max engraving speed: 0-30,000mm/min

 Max cutting speed: 0-24,000mm/min

 Laser output control: 1-100% software setting

 Location precision: less than 0.01m

 Highest scanning precision: 50-1000DPI

 Operating temperature: 0 - 45C

 Operating humidity: 5- 95% non-condensing

 Minimum shaping character: English 1x1 mm

 Driving system: Micro-step motor and amplifiers

 Cooling mode: Freon-based chiller and water flow sensor

 Auxiliary equipment: Vacuum/Exhaust fan, air-exhaust hose, air-assist pump

 Work surface: Iron honeycomb

 Controlling software: Ruida

 Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop, ...and more

 File formats supported: JPG, BMP, PLT, DST, DXF, AI...

 Color separation: Uses color property to set function, speed, and laser power.

Product Application

1390 Reci 90w 130w 150w 180w acrylic mdf paper leather RD control system co2 laser cutting machine

 Applicable Industries:

Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.

 Cutting and Engraving materials:

Bamboo, jade, marble, glass, crystal, plastic, garments, paper, leather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and other non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".

Product Features

Laser Cutter/Engraver, Water cooling pump and tank, Air Pump, Exhaust blower, Software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual, Communication cable, Power cable, Lenses and Laser tube (80 Watts), Machine operation Manual, USB Communication cable.

 Easy to Use LCD Control Panel

User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the X or Y axis, LCD Viewing Display, Z-Axis up/down, Control Interior light, Emergency Stop, Lockout the operations with the Key.

 Dedicated Micro Processor Controller for great performance

The heart of the laser machine is the industry leading Ruida controller. The Ruida motion controller is connected to the computer by USB connection. The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Ruida controller has RAM onboard to store large projects without re-downloading from your computer.

 Laser tube

The standard laser tube is 80w. Alpha supplies 80-180 laser tube for your choice, you can choose according to your work and the workpiece thickness.

 Transmission system

The guide liner is Taiwan Hiwin square rail, which is durable, after long time use, it will still have high precision. The belt is Shanghai Fulong brand, it is durable and hard deformed.

 Table

Alpha supplies blade and honeycomb table for your choice, you can choose according to your requirement.

 Air Pump

The air pump is used for three basic reasons. The primary reason is the push fumes away from the laser's focal lens. This protects the lens from contaminants which could destroy the lens. The second function of the air pump is to push air into the material's kerf as created by the laser beam. Air that is applied to the kerf will remove debris/fumes and allow the laser light to penitrate deeper through the material. The third reason is that the air will help to cool the material. If the laser cut/engraved material stays hot, then it could warp or shrink. This air pump is a diaphram style which does not require oil. Oil or water in the air line could be projected directly onto the focal lens. This air pump has a higher air flow rate and is quieter than other piston-stroke designs.

 Blower / Fan / Vacuum

The vacuum blower creates an air flow to remove dust and fumes from the work area of the laser machine. It is important to remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens. Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroy the optics. The fumes need to be removed from the operator work area because they can be irritating and unhealthy. The blower can also be connected to a vaccum box to pull air through the work material.

 Lens

American imported material made lens, making the lens with high quality.

 Pass-Thru Doors

The laser machine frame is built with doors that allow materials to extend out the front and/or rear of the machine. The pass-thru is helpful when engraving or cutting material that cannot fit completely inside the machine. Examples: Engraving pictures onto a bathroom shower door. Rolls of fabric threaded into the rear door, engraved or cut, and then pulled out the front door. Engraving the front door to my house. Engraving very large mirrors or sheets of glass. The limits are endless.

 Castor Wheels

The various models of laser machines can weigh from 300 to more than 1000 pounds. Every machine is equipped with castor wheels to make it easier to move it around the workshop or office. While the castor wheels are great for moving the laser machine around the building, the laser machine is also equipped with leveling pads. The leveling pads should be used for long term stabilization of the laser machine.

 Laser Head

Alpha supply short and long laser head for your choice. short laser head usually for cutting, long laser head usually for engraving.
