3D Crystal Laser Engraving Machine

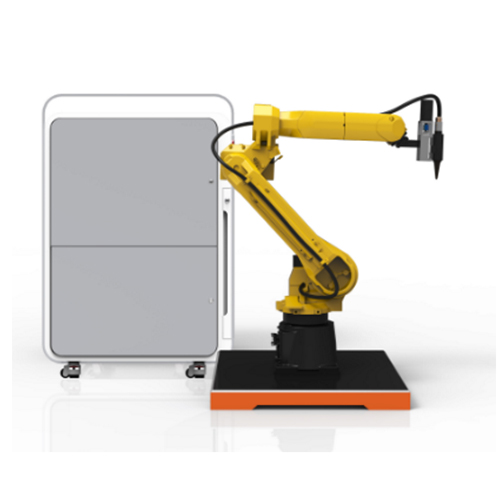

3D Crystal Laser Engraving Machine is an advanced laser cutting device which processes flexible cutting for metal plates multi-dimensionally and multi-directionally with the adoption of specialized fiber laser cutting head, high precision capacitive tracking system, fiber laser module and industrial robotic system. Utilizing the performance of robot’s flexibility and swiftness. besides according to different workpiece’s size, it can do three dimensional cutting to irregular workpieces by fiber laser cutting head through formal and inverse installation of robot. It also requires teaching programming or offline programming according to different products and various tracks. Under the utilization of transferring fiber laser to cutting head(fiber laser cutting head is equipped with specialized fiber auto-following device and light path transferring device), and focal system, the machine can achieve three dimensional metal plates’ cutting multi-directionally.

According to thicknesses of the metal plates, the choice of fiber power is also different. Different cooling systems are also equipped with laser module of different power to assure the laser module’s normal work. In order to meet customer’s cutting requirements, meantime we need to choose fiber laser with suitable length according to the working semi-diameter of robotic arm and the workpieces’size.

Product Parameters

Product Features

 The best combination of sophisticated technique and digital control technology represents the most advanced laser cutting level

 The machinery construction are adopted imported manipulator and six axis linkage, and integrate laser beam guidance equipment into robot arm. The combination of stable laser beam and moving robot arm can realize production of any or specific curve in three-dimensional space. Therefore, the convenient operation, high intelligence and greatly reduce the cycle time, and can ensure its high moving speed, high accuracy and high reliability

 Equipped with professional moving control system can make sure that the cutting effect and stable moving, all this make cutting more convenient and easy operation

 Imported higher precision laser cutting head,quick-response,cutting precision.Cooperate with cnc hand efficiently,avoiding crashing between laser head and working material,as well as assuring the cutting spot to obtain stable cutting quality

 The combination of industrial robot and fiber laser,ensure the complete working process.Tidiness cutting slide,without re-treatment.Greatly shorten the working process, reduce the labor mold costs, and also improve the product grade and added value

 The laser head can sustain 1.0Mpa gas pressure.High pressure pneumatic equipment improves the cutting ability of difficult cutting material such as stainless steel

 Using industrial robots greatly reduces the system cost, reduces the cost of power system and system maintained, reduces the system space
