it can engrave stone, glass, ceramic, and do perfect work on many other nonnmetal materials....
Send Inquiry| Parameters: | |

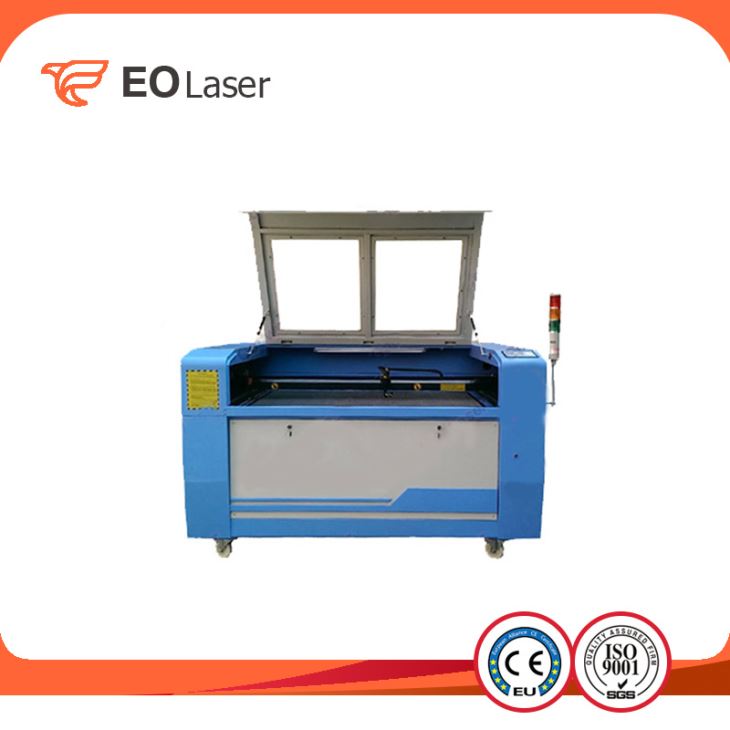

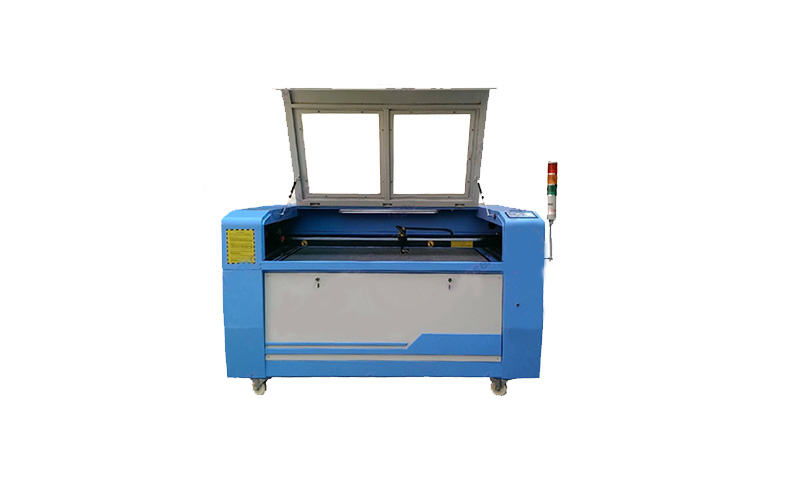

| Model | GW-1390 |
| Engraving and Cutting Area | 1300*900mm |
| Tube type | CO2 sealed glass tube |
| Laser wave | 10.6um |
| Laser Power | RECI-80W |
| Cooling | Pure water (GZ teyu water chiller CW3000) |
| Engraving Speed | 0-75,000mm/min |
| Cutting Speed | 0-40,000mm/min |
| Reposition Accuracy | ±0.01mm |
| Minimum Character Size | English:1mm ; Arabic numbers:1mm |
| Resolution | 4,000 dpi |
| File output mode | 2.0 USB interface |
| Machine Power | <2,000W |
| Support Format and Software | PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3 |
| Working Environment Temperature | 0-45°C |
| Drive system | Leashine Stepper motor |
| Control system | Ruida DSP offline control system |
| Exhaust smoke system | Big exhaust fan ( Optional Air purified) |
| Working Voltage | 220V,50HZ/60HZ |
| N.W. | 460KG |
| G.W. | 520KG |
| Warranty time | 2 year for machine (12 months for RECI tube) |
| Package | Wooden case |
| Packing size | 2270*1870*1300mm |
| Delivery time | 3 working days after received the deposit |
Applicable Materials:
Non-metal materials such asacrylic, wood,MDF, plywood, bamboo, double colore boards, paper, plastic, and leather,
it can also engrave stone, glass, ceramic, and do perfect work on many other nonnmetal materials.
Applicable Industries:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and
cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine
leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc.ABC plate
cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
