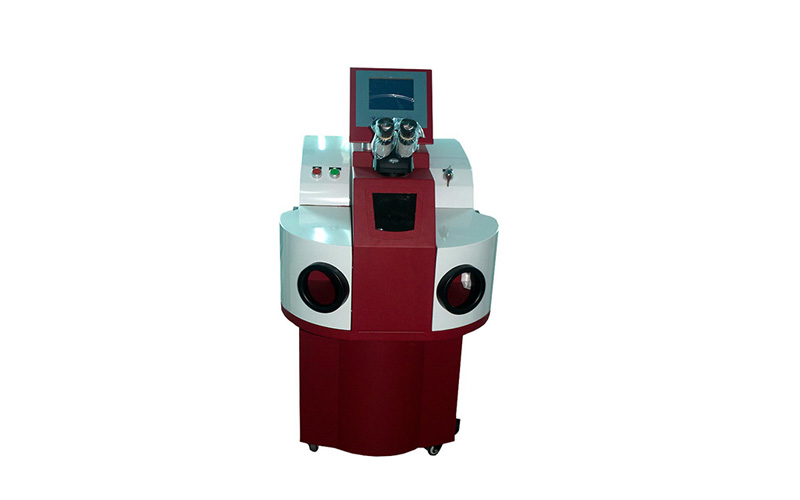

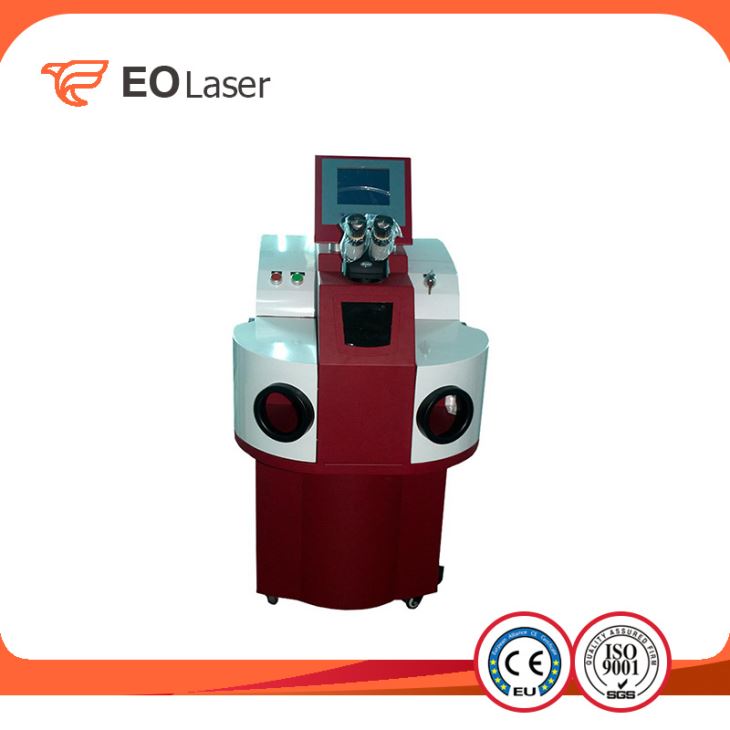

150W Jewelry Laser Welding Machine

150W Jewelry Laser Welding Machine

Spot delivery, including delivering small batches of goods Provide wide-range and complete materials series products Cutting plates, including complex shapes of materials and special processing and disposal Cutting bars and strips Our application technology expert provide the best material and recommendation One-stop service....

Send Inquiry
Product Details



Quick Details
Condition:New
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:EO-W200
Pulse Width:0.5-20ms
Wavelength:1064nm
Focal Spot Diameter:0.2-2mm
Max. Output Power:200W
Dimensions:customize
Usage:Laser Welding for Jewelry
Power(W):7KW
Certification:CE, ISO9001:2008/IOS9001:2000
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Power supply:220v/50Hz
Welding depth:0.1-3.3mm
Laser Type:YAG
Sighting positioning method:Semiconductor red light
Cooling method:Water cooling
Voltage adjustment range:100-400VDC
Peak pulse current:400A




Technology Parameter:
ModelEO-W90EO-W200
Maximum laser power 0.1-3.3mm
Laser wavelength0.5-20ms
Laser welding depth0.2-2mm
Pulse width3KW3.5KW
Size of light spot220V/50Hz
Integrity power±0.01mm
Power supply±0.02mm
Laser typeNd:YAG pulse
Sighting positioning methodSemiconductor red light
Cooling methodWater cooling
Voltage adjustment range100-400VDC
Peak pulse current400A



INTRODUCTION:

This welder is specially developed for laser welding of jewelry used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small part.
