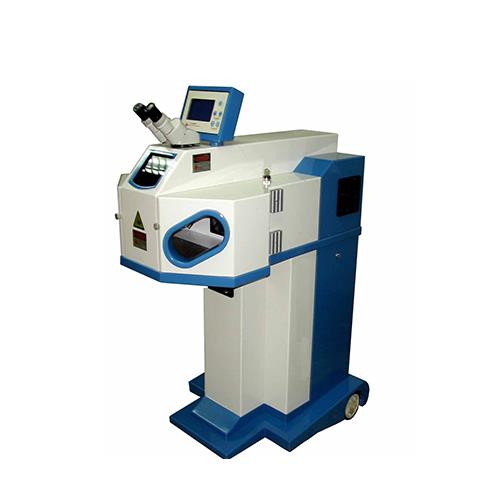

Product Name: Jewelry Laser Welding Machine For Repairing
Classification: Jewelry Laser Welding Machine
Application: jewelry, steel alloy, high tenacity aluminum alloy, etc
Place Of Origin: China
...
Product Parameters
Model No. | CY-WL100J | CY-WL150J | CY-WL200J |
Laser Source | Nd:YAG | ||
Laser Wavelength | 1064nm | ||
Rated Power | 100W | 150W | 200W |
Laser Energy | 40J | 60J | 80J |
Pulse Width | ≤20ms | ||
Pulse Frequency | ≤50Hz | ||
Beam Diameter | 0.1-3.0mm | ||
Power Supply | 220V±10% /50Hz and 60Hz compatible | ||
Observing System | microscope 10X | ||
Chamber Illumination | LED circle lamps | ||
Parameters Memorization | 10 groups | ||
Protection Alert | flow alert | ||
Language Display | Chinese/English | ||
Shield Gas Supply | One line(Argon) | ||
Cooling System | water chiller | ||
Power Consumption | 4KW | 5KW | 6KW |
Welding Chamber Dimensions | 340mm*540mm*180mm(L*W*H) | ||
Machine Dimensions | Welder:970mm*570mm*1220mm (L*W*H) | ||
Chiller:430*370*585mm(L*W*H) | |||
Running Environment | 5℃-30℃, 5%-75% humidity | ||
Net Weight | 150kg(welder)+65kg(chiller) | ||
Product Application
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel,
nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver,brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
Product Features
Ceramic converging cavity made in UK: corrosion resistant and high temperature resistant, with 8-10 years service life. The life of xenon lamp bears more than 8 million times flashing.
Most advanced light shielding system can eliminate the irritation to eyes by laser during working.
The laser head can rotate for 360°, lift up and down, move left and right, go forward and backward
The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator
The work bench can be lifted, and mo
ved in three dimensions.
The size of light spot can be adjusted accordingly and automatically.
More
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment of Jewelry Laser Welding Machine For Repairing, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
