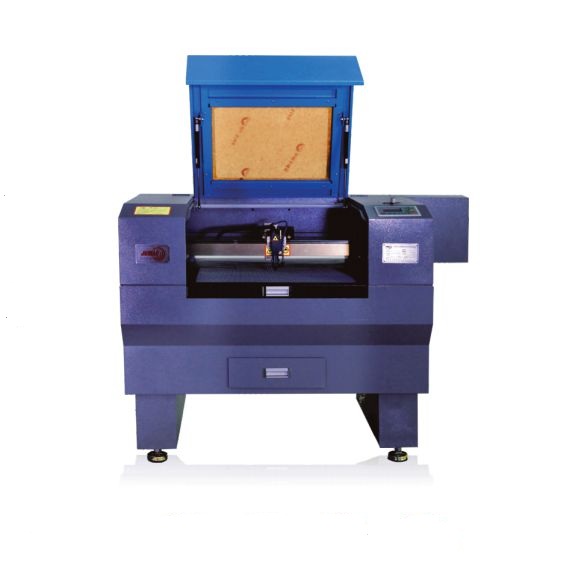

Acrylic Laser Cutting Machine For Nozzle

Acrylic Laser Cutting Machine For Nozzle is equipped with high-performance and high-precision imported high-speed linear motion track, to improve cutting accuracy as the standard; and (delete) strick requirements for mechanical structure, electrical performance and device material selection can be reflected, its requirements for stable performance and accuracy of the whole machine, speed within its reasonble range; it is very suitable for enterprise product plate-making, mass production....

Send Inquiry

Product Details

Model	EOJM-640SK
Laser type	Domestic sealed off CO2 laser tube
Cutting area	600mm×400mm
Laser power	60W(optional 80W)
Cooling	Water chiller
Moving system	Stepping motor
Engraving speed	0-400mm/s
Max cutting speed	0-100mm/s
Dimension(mm)	1210×840×1130(height matching manipulator)
Environmental requirements	Temperature 15℃ humidity30%-80%
Power supply	220V/50-60HZ, 10Amax

EOJM-640SK nozzle laser is equipped with high-performance and high-precision imported high-speed linear motion track, to improve cutting accuracy as the standard; and (delete) strick requirements for mechanical structure, electrical performance and device material selection can be reflected, its requirements for stable performance and accuracy of the whole machine, speed within its reasonble range; it is very suitable for enterprise product plate-making, mass production.

Features

High cutting precision

High speed

Can cooperate with the Mainpulator

Applicable industry

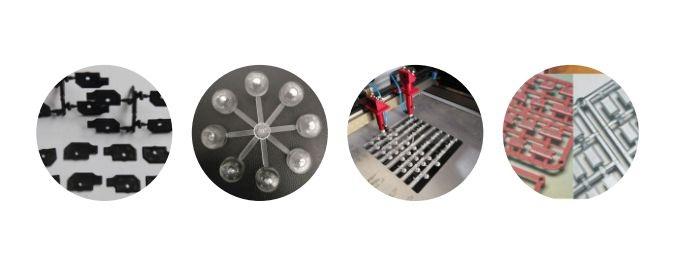

Applied to mobile phone plastic buttons, injection nozzles, Auto parts, remote control button, electronic products, Packaging and printing, textile and leather fabrics and other industries.

Applicable materials

Applicable mateials: all kinds of acrylic plexiglass,ABS, PET, leather, wool, cloth, wood products, plastic, rubber, crystal, jade, epoxy resin.

截图20190628184947
