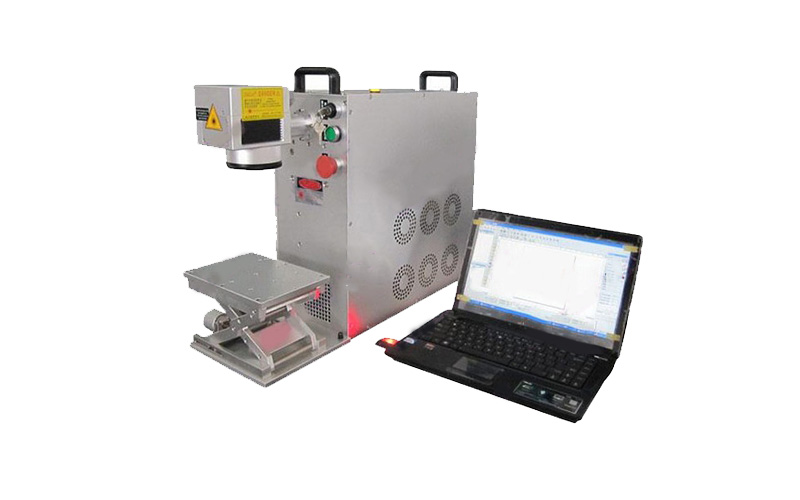

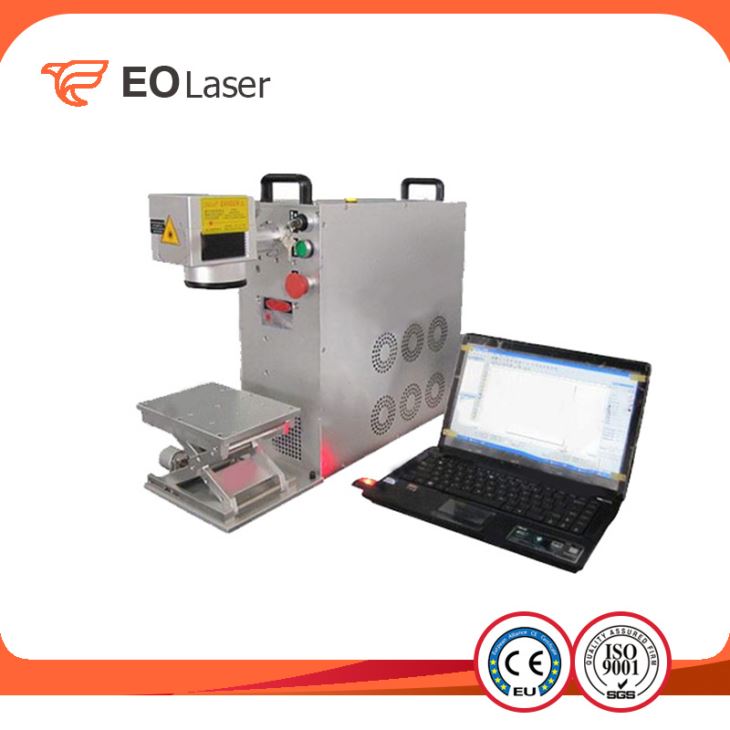

New style fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world....
Send Inquiry| Technical Parameter: | |
| Model | GW-10 / 20 / 30 / 50 |
| Laser device | China MFP / Gernmany IPG / U.K SPI |
| Optical maser wavelength | 1064nm |
| Average output power | 10W / 20W / 30W / 50W |
| Beam Radiation Angle | ≤2mrad |
| Modulation frequency range | 20KHz~80KHz |
| Beam Quality | M2:1.2-1.8 |
| Working Environment | Clean and dust free or dust less |
| Marking Depth | 0-1mm(depending on the materials) |
| Maximum speed | 8000mm/s |
| Resolution | 0.001mm |
| Repeat location accuracy | 0.003mm |
| Marking range | F=160mm,160×160mm |
| Working range | 182mm x (±2mm) |
| Working stability (8h) | ＜±1%rms |
| Minimum line width | 30um |
| Minimum character height | 0.2mm |
| Sheet label marking time | ≤ 90 s (depend on the content) |
| Laser power supply | <500W / 220V / 50Hz, |
| Cooling mode | Air cooled |
| The Max input power | 2 phase 220V AC,50Hz,about 2.5A |
| Environmental Requirement | 0~35°C,humidity≤90% |
| Graphic Format Supported | bmp,jpg,gif,tga,ai,dxf,dst,plt,etc. |
| Warranty | 2 year, within time free change parts |
| Package | Wooden case |
| Delivery time | 5 working days |
| Packing size | 1000*1200*1600mm |
| G.W | 20kg--60kgs |
| Configurations: | |
| 1. IPG 20W laser source | 2. IPG control board & control system |
| 3. 17inch computer | 4. Golden Orange software |
Application
Many type of metal: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass, etc
Alloy and metal oxides: Anodized Aluminum
Some non-metal materials & Special surface treatment: silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink, Plating, Spraying, Coating film.
Advantages
Most advanced. New style fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.
Delicate marking. The quality of laser beam is very good (near to the limit of diffraction,eporting TEM00 fundamental transverse mode,M2 near to 1,expanding of laser beam is only 1/4 of the diode laser marker),therefore it is very suitable for delicate marking.
Fastest marking. With high repeat of the pulse,power output steadily,energy surge of single pulse is lower than 1%,can achieve high speed marking,and control the depth and shape of the facula.
The processing speed is 2-3 times than the traditional marking machine.
Compact. The size of the macine is very small, portable, suitable for both mobile and fixed working.
11 years life,ultra-low running cost. Long life,ultra-low power consumption,the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw.
Wide range of application.The machine can marking on all the metal materials and some of nonmetal materials.
Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
