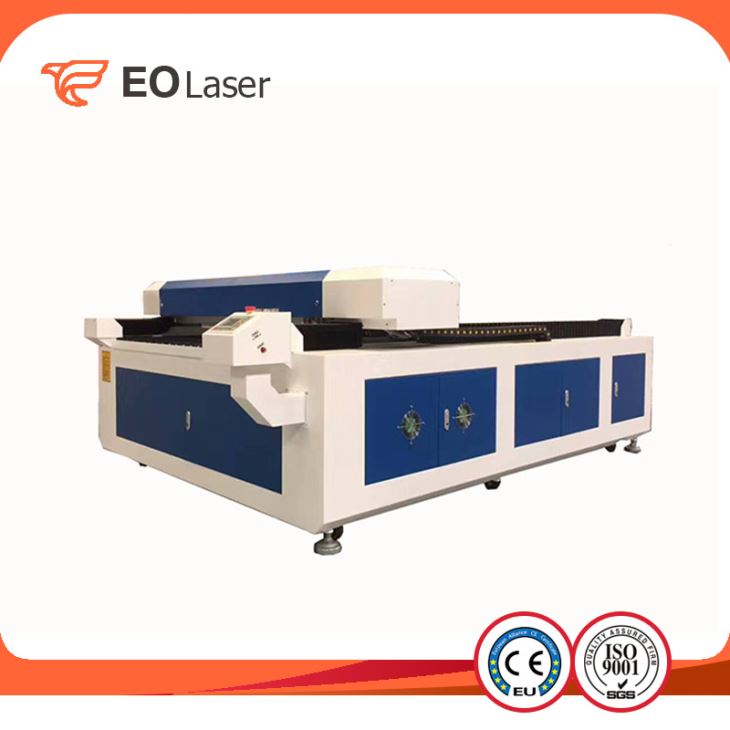

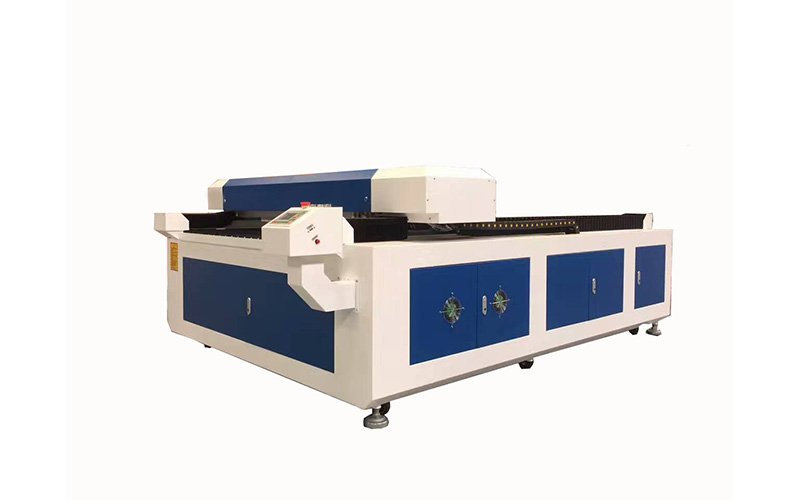

GW-1325 CO2 Marble Laser Cutting Machine Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc....
Send Inquiry| Parameters: | |
| Model | GW-1325 |
| Engraving and Cutting Area | 1300*2500mm |
| Tube type | CO2 sealed glass tube |
| Laser wave | 10.6um |
| Laser Power | RECI W6 (130--160W) |
| Cooling | Pure water cycle (water chiller) CW5200 |
| Engraving Speed | 0-60,000mm/min |
| Cutting Speed | 0-30,000mm/min |
| Reposition Accuracy | ±0.01mm |
| Minimum Character Size | English:1mm ; Arabic numbers:1mm |
| Resolution | 1,000--10,000 dpi |
| File output mode | 2.0 USB interface |
| Machine Power | <3,700W |
| Support Format and Software | PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3 |
| Working Environment Temperature | 0-45°C |
| Drive system | Leadshine stepper motor 573S-15L + 3M blet |
| Control system | Ruida 6442G DSP offline control system |
| Transmission way | PMI Linear Rail |
| Exhaust smoke system | 550W exhaust fan |
| Working Voltage | 220V,50HZ/60HZ |
| N.W. | 1200KG |
| G.W. | 1300KG |
| Warranty time | 3 years for machine, 10 months for tube |
| Package | Plywood case with steel tube |
| Packing size | 4100*2260*1500mm |
| Delivery time | 7--12 working days after received the deposit |
Features:
1. High precision: Adopt Leadshine 573S15-L stepper motor with PMI MSA-20R Linear Rail transmission greatly improve the response speed & cutting precision of equipment, extend the time of using.
2. Constant light system :The machine uses the constant light,achieving high precision cutting of the whole area.
3. High precision and stability: with precision Fulo belt & PMI Linear Rail transmission mechanism and optimized the Ruida RDC 6442G system control, it can meet the precision parts processing ,also can work for long hours.
4. Adopt RECI W6 sealed CO2 laser tube, main consumable items are electric energy, water-cooling,auxiliary gas and laser light.
5. Sample structure,easy operation ,stable laser device and low maintenance cost.
Applicable Industry:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Applicable Material:
Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
