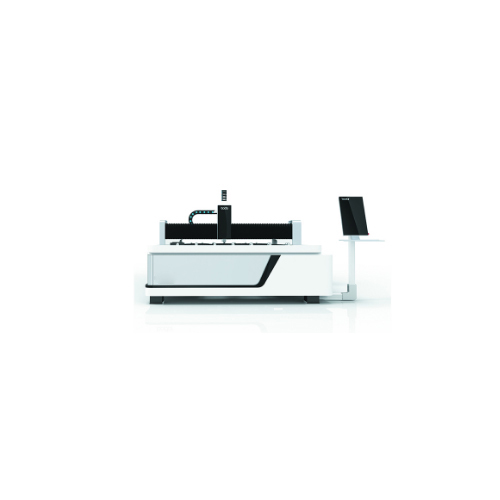

Product Name: CNC Stone Laser Cutting Machine
Classification: Stone Laser Cutting Machine
Application: galvanized sheet, electrolytic plate, aluminum plate, etc
Place Of Origin: China
...
Product Parameters
Model | F1530 | F1540 |
Cutting Range (length*width) | 1500*3000mm | 1500*4000mm |
Fiber Laser Generator medium | Semiconductor pump continuous ytterbium doped fiber | |
Max Moving Speed | 100m/min | |
Max Cutting Speed | 25m/min | |
Positioning Accuracy | 0.03mm | |
Repeated Positioning Accuracy | 0.02mm | |
Cooling Type | Water cooling | |
Laser Output Power | 500W/1000W/2000W/3000W/4000W | |
Min Line Width | 0.1mm | |
Drive System | Servo motor | |
Power Allocation | 380V/220V±10%, 50Hz/60Hz | |
Continuous Working Time | 24 hours | |
Related Weight | Whole machien: approx 4 tons, actual weight based on final configuration (depends on model) | |
Machine Size (l*w*h) | 2.4*5.7*1.9m 2.4*5.7*1.9m | |
Accessories (l*w*h) | Water chiller 1*1*1.2m, contol box 1*0.8*1.8m, fiber laser generator 0.5*0.6*0.14m | |
Product Application
Applicable Fields
Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet, electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials
Product Features
Excellent Path Quality: Smaller laser dot and high work efficiency, high quality
High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine
Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours
High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency
More
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment of CNC Stone Laser Cutting Machine, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
