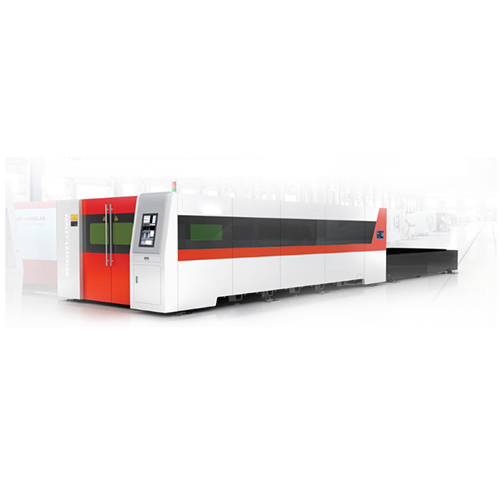

CNC Fiber Metal Laser Cutting Machine

CNC Fiber Metal Laser Cutting Machine adopts gantry-motion structure, linear guide, screw drive, AC servo motor and drives, and vacuum system (both sides), etc. The one-time processing area is 3m*1.5m. Not only that the equipment's design is advanced and reliable, but also that all key components are from both national and international well-known brands. In particular, we use Germany BECKHOFF' company's professional laser CNC system for the electrical control system. This special laser CNC system has advantages of high integration, better control precision and more stable operation, therefore, in addition to the meet the requirement of cutting carbon steel plate, it can also meet the requirement of cutting SS plate, aluminum alloy, copper alloy and other materials.

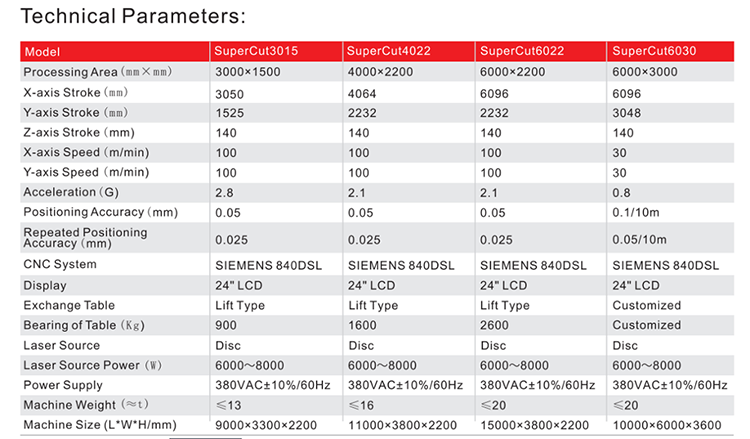

Product Parameters

 Max. Power Supply: 8000W

 Thickness of Cutting : ≥30mm

 Cutting Speed: 60m/m for 1mm sheet metal

 High-speed Perforation: diversified high-speed perforation technology

 Back-off Function: back-off to along the original route

 Nozzle Cleaning: auto-nozzle cleaning

 Sheet Metal Nesting and Typesetting

 Auto-Line Tracking: auto calculating angle between sheet metal and machine tool coordinate

 Handheld Unit: Self-invented handheld unit, convenient for technology parameter adjustment

 Cutting gas controlling: Advanced integrated high pressure proportional valve

Product Features

 Bright surface Cutting: Smooth cutting surface, high accuracy, perfect squareness

 Diversified Sheet Choice: Standard cutting mode and SuperCut Mode

 Intelligent Cutting System : Auto-controlling and auto-focusing cutting gas

 Auto-Loading & Unloading System

More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CNC Fiber Metal Laser Cutting Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
