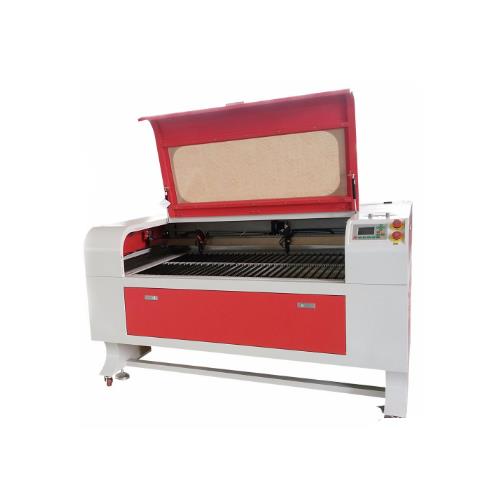

CNC Wood CO2 Laser Cutting Machine

Product Name: CNC Wood CO2 Laser Cutting Machine
Classification: Wood Laser Cutting Machine
Application: wood, bamboo, jade, marble, etc
Place Of Origin: China
...

Send Inquiry

Product Details

Product Parameters

Laser power	50W/60W/80W/90W(optional)
laser type	hermetic co2 glass tube
power supply	AC220V ±10% 50HZ/AC110V ±10% 60HZ
working area	600mm×900mm
max moving speed	0-40000mm/min
worktable	honey comb worktable, up/down worktable, aluminium knife(optional)
location precision	<0.01mm
Min shaping Character	character:2×2mm,letter:1×1mm
Operating Temperature	5°C-35°C
Resolution Ratio	≤4500dpi
Control Configuration	DSP
Data Transfer interface	USB (offline)
System Environment	windows2000/windows XP/ Vista/win7/win8
Cooling Way	water cooling and protection system
Graphic Format Supported	The Files which Corel Draw. Photo shop. Auto CAD Canidentify(BMP,GIF,JPGE, PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF, EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)
Compatible Software	Corel Draw, Auto CAD
Cutting Thickness	0-20mm(depends on different materials)
Color Separation	separation of cutting up to 256 colors
Sloping Engraving	Yes, slope can be designed discretionarily
Cuts off the Water Supply the Protection	yes
Machine Dimension	15700×1000×1170mm
Package Dimension	1700×1180×1350mm
Net Weight	300kgs
Gross Weight	380kgs
Optional Parts	CW3000/CW5000 chiller, cylinder/irregular rotary attachemnt, auto focus, mutixolor TFT touch screen

Product Application

Applicable Materials

wood, bamboo, jade, marble, organic glass, crystal, plastic, fabric, paper, leather, ceramic, glass and other non-metal.

Applicable Industry

Advertisement, arts and crafts, toys, garments, model, building upholster, cumputerized embroidery and clipping, packing and paper industry.
