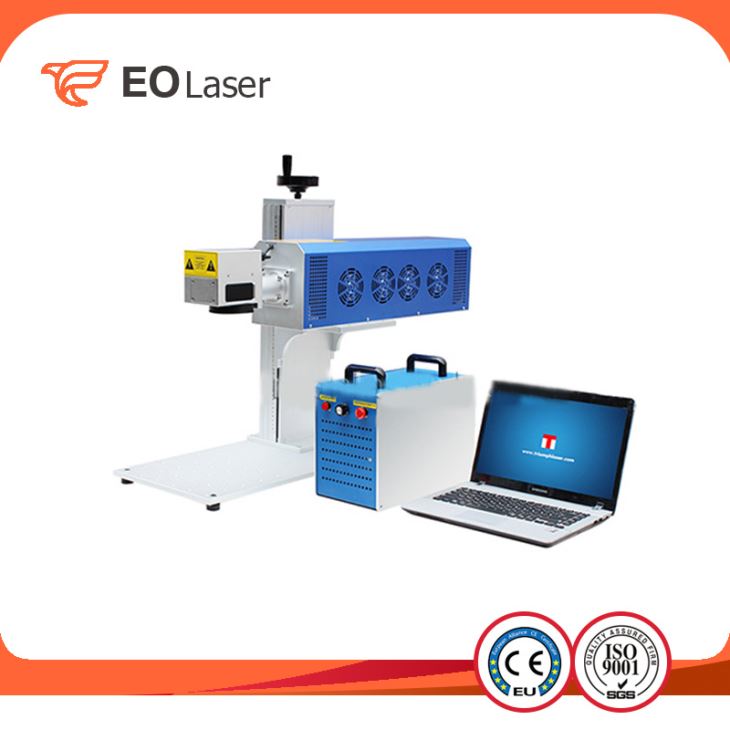

Portable small size,light weight.Fast marking speed, 2-3 times faster than the traditional marking machine....
Send Inquiry| Quick Details | |||||
| Application: | Laser Marking | Condition: | New | Laser Type: | Fiber Laser |
| CNC or Not: | Yes | Cooling Mode: | Air Cooling | Control Software: | EZCAD Software |
| Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Working Accuracy: | 0.001mm | Place of Origin: | China |
| Brand Name: | EO | Model Number: | TR-F20M | Power(W): | 10W/20W/30W/50W |
| Certification: | CE, SGS, FDA | After-sales Service Provided: | No overseas service provided | Laser type: | Fiber laser |
| Cooling: | Air cooling | Locating precision: | <=0.001mm | Highest scanning precision: | 100-1000DPI |
| Laser wavelength: | 1064nm | Power supply: | AC/220V/110V | Work Temperature: | 0-45degree |
| Using: | Marking engraving | Marking depth: | 0-2mm steel | Laser source: | Max/raycus/IPG |
| Laser power | 10W | 20W | 30W | 50W | 100W |
| Laser wave length | 1064nm | ||||
| Sandard marking area | 110*110mm | ||||
| Optional marking area | 150*150 300*300 customerized aviliable | ||||
Minimum character | 0.15mm | ||||
Marking speed | ≤7000mm/s | ||||
Marking depth | 0.01~1mm | ||||
Repeat frequency | 20KHZ~80KHZ | ||||
| Output laser beam quality | M²≤2 | ||||
| Focus spot diameter | < 0.01mm | ||||
Control interface | Standard USB port | ||||
| Graphic format supported | BMP,JPG,AI,PLT,DST,DWG ETC. | ||||
Marking format | Text,symbols,graphics,images,barcodes,two-dimension bar. date marking,batch number,serial number etc. | ||||
Operating temperature | 0-45°C | ||||
| Cooling way | Built-fan for air cooling | ||||
Working voltage | 220V-50Hz(single phase)or 110V-60Hx(single phase) | ||||
| Computer | Including laptop cpmputer per set(software installed) | ||||
| Laser marking oftware | Ezcad(English version)(the other optional software please contact us) | ||||
| General power | <0.5KW | ||||
Working environment | Clean and dust-free or dust less | ||||
Working condition | 5%~75%,free of condensed water | ||||
Optional device | Rotary marking attachment ;X/Y adjustable table | ||||
FEATURES
1.All in one structure with manual focusing system and user-friendly operation.
2..Laser beam qulity is much better than the traditional laser marking machine.
3.High electricitylaser exchange ratio, gross electricity consumption is less than 500W, which is 1/10 of the YAG’s consumption.
4.Free from maintenance, long working life, low consumption suitable for any working environment.
5.Fast marking speed, 2-3 times faster than the traditional marking machine
6.The marking software supports files such as Coreldraw, AutoCAD, Photoshop and PLT,PCX,DXF,BMP; SHX or TTF can be directly adopted; the functions such as autocoding for sequence No., batch number, date, barcode and so on.
7.Portable small size,light weight
8.Humanizing operating process and good stability of equipment operating
9.Equipment comprehensive performance is stable and has 24 hours of continuous working ability
