CNC Wood Laser Etching Machine

CNC Wood Laser Etching Machine

Product Name: CNC Wood Laser Etching Machine
Classification: Wood Laser Etching Machine
Application: nonmetal materials, etc
Place Of Origin: China
...

Send Inquiry
Product Details

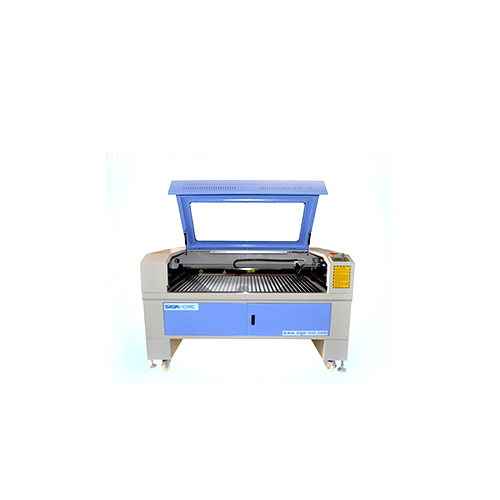

As you see in the above picture of CNC Wood Laser Etching Machine, the upper body can be separated from the machine, and put onto the material, then engrave. This is very convenient for engraving some thick and heavy materials, like stones.


Product Parameters


Machine model:

LM-1390 cnc stone laser etching machine

Laser type:

Sealed CO2 laser tube, wavelength: 10.64um

Laser power:

60W / 80W / 100W

Cooling mode:

Circulating water cooling

Laser power control:

0-100% software control

Control system:

DSP offline control system

Max. engraving speed:

60000mm/min

Max cutting speed:

50000mm/min

Repetition accuracy:

0.01mm

Min. letter:

Chinese: 1.5mm; English: 1mm

Table size:

1300x900mm

Working voltage:

110V/220V,50~60Hz

Working conditions:

temperature: 0-45°C, humidity: 5%-95%

Control software language:

English / Chinese

File formats:

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc



Product Advantages

1.jpg CO2 Glass sealed laser tube

China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.

1.jpg Laser Power

40W~180W, good quality and stable output to extend the laser tube service time.

1.jpg Singapore imported lens and mirrors

High transmittance, good focusing, reflecting effect.

1.jpg DSP control system, Leetro Controller

Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.

1.jpg High accuracy stepper motors and drivers. Belt transmission

1.jpg Aluminium blade table

1.jpg Tiwan Linear guide rails

1.jpg Lasercut 5.3 software, user’s manual

1.jpg Tool box


Product Features

1.jpg Industrial Cooling System

Constant water temperature ensures laser tube a longer service time and high stability

1.jpg Exhaust Fan

Exhaust fan removes dust and smoke to protect the optical parts and the users.

1.jpg Electromagnetic air pump

The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CNC Wood Laser Etching Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
