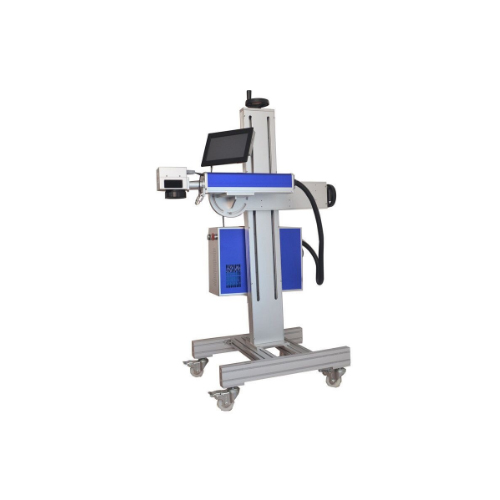

Product Name: Plastic Fiber Laser Marking And Engraving Machine
Classification: Plastic Laser Marking Machine
Application: metals and some non-metals
Place Of Origin: China
...
Our Plastic Fiber Laser Marking And Engraving Machine through fiber laser device, it has high electro- optical conversion rate, small size, good beam quality and does not require any water cooling system. Fiber laser device is the world’ s most advanced, whose service life is long and maintenance charge is low. With superior technical accessories, the fiber laser marking machine has fast speed and stable performance and has won the trust of many customers for its excellent performance and reliable quality.
Product Parameters
power | 10W/20w/30w/50w |
Laser wavelength | 1050-1070nm |
Repetition frequency | 20-30KHZ |
TEMOO Gaussian beam | <2 |
Marking range | 100*100mm 200*200mm 300*300mm,500*500mm(optional) |
Marking depth | ≤0.4mm |
Marking speed | ≤10000mm/s |
Minimum linewidth | 0.01mm |
Minimum character | 0.15mm |
Repeat accuracy | ±0.002 |
Power supply | 220V/50Hz |
Power consumption | 500W |
dimension | 570mmX270mmX200mm |
Total weight | About 90kg |
Operating system | WinXP |
cooling | Built- in air cooling |
control interface | Standard USB |
File format | All the characters/ fonts of WINDOWS operating system |
Laser device type | Impulse fiber laser device |
Product Application
Mainly applied on metals and some non- metals, especially designed for the industrials have high requirements in depth, smoothness and fineness, such as sanitary ware, medical appliance, glasses, clocks, watches, automobile fittings, plastics, paper, electronic hardware.
Product Features
The high quality laser
The wavelength of 1064 nm high-energy laser pulse output
Good laser beam mode, electro-optic conversion efficiency is high
The whole machine low energy consumption, maintenance free
The machine has compact structure, small volume
The machine running in stability, high safety
The whole machine, simple and convenient operation, high precision marking quality
The software intelligent control part design, the menu is with user friendly interface
Provide a variety of data interface hardware control part, automated actions
it meets the demands of industrial field work continuously for a long time
Marking software powerful: support Coreldraw, AutoCAD, Photoshop software,
Support the PLT, DXF, BMP, PCX, JPG and other commonly used vector graphics and bitmap graphics.
More
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment of Plastic Fiber Laser Marking And Engraving Machine, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
