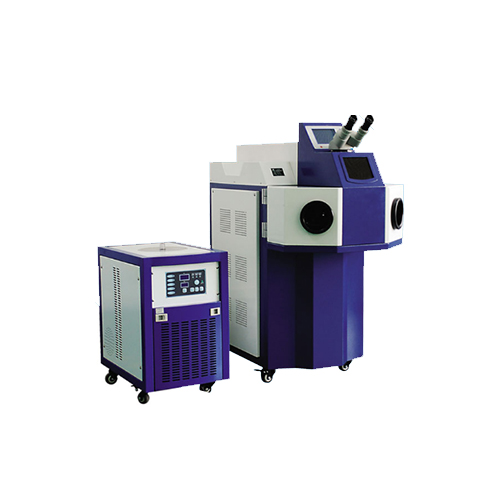

Product Name: Jewelry Fiber Laser Welding Machine
Classification: Jewelry Laser Welding Machine
Application: gold and silver jewelry
Place Of Origin: China
...
Product Parameters
Model | SL-WJ 200W |
Laser type | Nd:YAG |
Laser Wavelength | 1064nm |
Laser Power | 200W |
Laser Engery | 80J |
Pulse Width | ≤20ms |
Pulse Frequency | ≤50Hz |
Beam Diameter | 0.1-3.0mm |
Observing System | microscope |
Chamber Illumination | LED lamps |
Parameters Memorization | 10 groups |
Protection Alert | flow alert |
Language Display | Chinese/English |
Shield Gas Supply | One line |
Cooling System | Water cooling |
Power Consumption | 6KW |
Power Supply | 220V±10% /50Hz |
Welding Chamber Dimensions | 300mm*450mm*150mm(L*W*H) |
Machine Dimensions | 920mm*560mm*1220mm (L*W*H) |
Running Environment | 5℃-30℃, 5%-75% humidity |
Net Weight | 130kg(welder)+50kg(chiller) |
Product Application
Widely used in aviation, aerospace, sporting goods, jewelry, golf club heads, medical equipment, aluminum dentures, instruments, electronics, machining, automotive and other industries, in particular for the fill hole silver platinum titanium stainless steel jewelry accessories point weld lines, precious stones and claw feet by welding.
Product Features
Energy, pulse width, frequency, spot size can be adjusted within a wide range, in order to achieve a variety of welding results. Parameter adjustment lever by a closed cavity, simple and efficient.
The British imported ceramic condenser cavity, corrosion resistance, high temperature, high photoelectric conversion efficiency, the condenser chamber life (8--10 years), xenon lamp life of more than 8 million times.
The world's most advanced automatic shading system, eliminating the time to protect the eyes.
图1With 24 hours of continuous work capacity, machine performance and stability, within 1,500 hours of maintenance-free.
User-friendly design, ergonomic, long working hours without fatigue.
Speed, high efficiency, depth, small deformation, small heat-affected zone, high quality welding, spot clean, efficient and environmentally friendly.
More
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment of Jewelry Fiber Laser Welding Machine, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
